Switchboard Upgrades in Auckland

Why It Matters

When a Switchboard Upgrade Isn’t Optional Anymore

The tells are usually obvious once you know to look. Ceramic rewirable fuses? Board is old and has no RCD protection. RCDs that trip when nothing’s changed and won’t reset cleanly? We sort that on the older boards out west too, with switchboard work in Kelston. Something’s breaking down somewhere. A board that hums, runs warm to the touch, or smells faintly like burnt plastic when the kettle and the heat pump run together? Loose terminations creating heat. If a board fails outright or starts tripping everything at once, that is a job for emergency switchboard repairs before anything else. Original black Bakelite enclosures from the 50s or 60s are on borrowed time. Crowded boards with every way occupied and no headroom for anything new are the easy call. One of these on its own is a conversation. Two or more together and it’s time to replace the lot.

Load triggers the other half of our upgrades. A heat pump install runs a new dedicated circuit, the reason your switchboard may need upgrading for a heat pump. An induction cooktop needs its own high-current supply. An EV charger pulls 32 amps for hours at a stretch. Solar and battery systems need their own protection and inverter isolation. A granny flat or home office has its own sub-board. Any one of these on an older main switchboard can push the main supply and the existing protection beyond what they were designed for. Part of the quote is a proper load calculation under AS/NZS 3000 to work out whether the current supply still has headroom or whether Vector needs to lift the cable from the street.

Insurance is the quieter driver. NZ home insurers are increasingly asking about switchboard age and condition on renewal, especially on pre-1960s housing stock, and a switchboard safety inspection is often the cleanest way to put their concerns on file. A known-unsafe board on file at claim time is a weak position for the homeowner. A modern board with a fresh Certificate of Compliance is a strong one. Upgrading doesn’t guarantee a premium reduction, but it does make claims conversations significantly more straightforward.

What We Handle

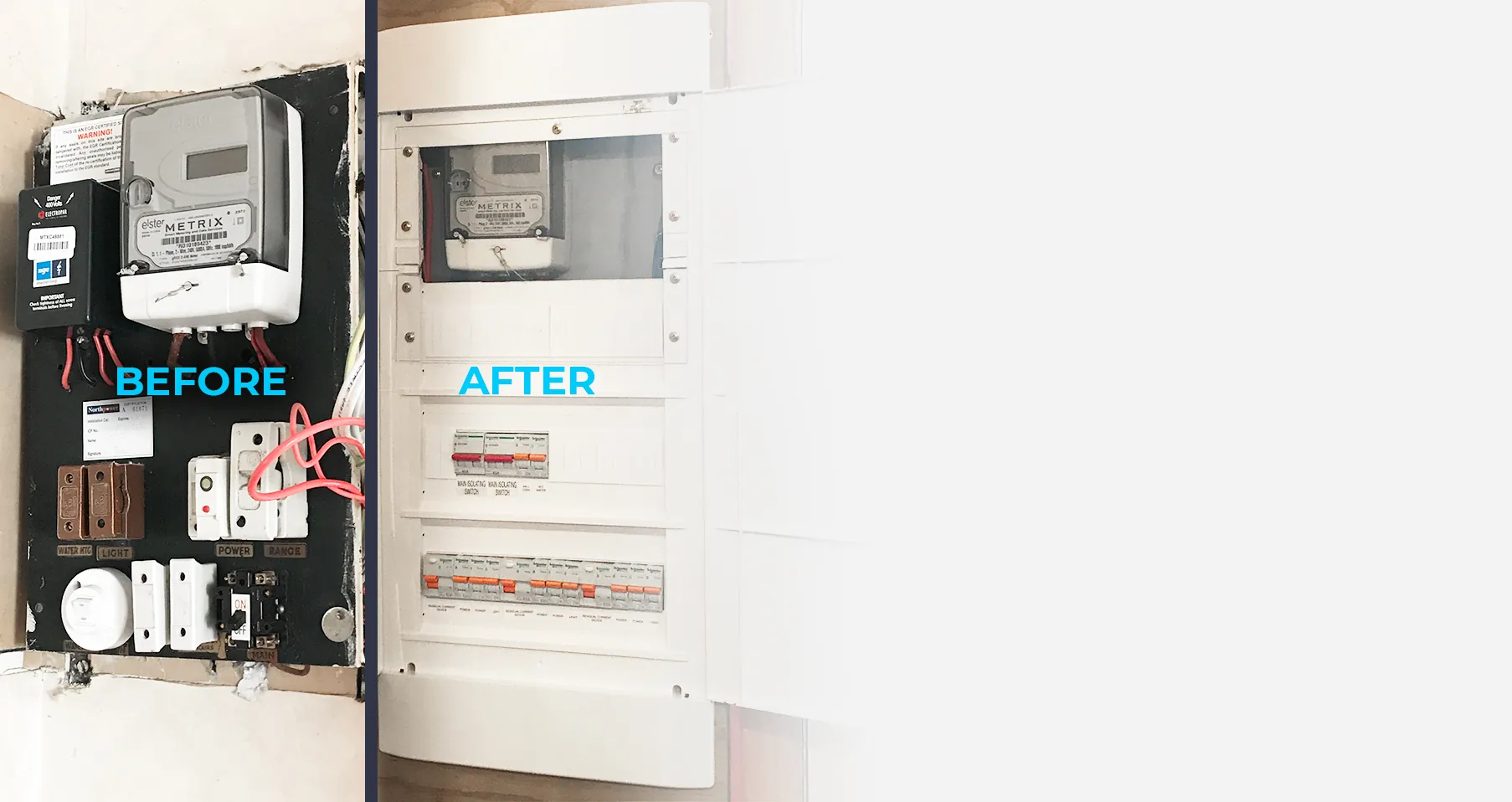

Full residential switchboard replacement is the most common job. Tear out the old board (fuses, Bakelite, whatever’s in there), install a new enclosure with a main switch sized to the supply, split the circuits across RCBOs so each circuit has its own protection, add a Type 2 surge protection device at the incoming side, run a fresh earth to the new earth bar, label every circuit properly, and test the lot before the power goes back on. If only a single MCB or RCBO has failed, an individual breaker swap is a quicker job that does not require replacing the whole board.

Modern boards lay out differently too. Older installations often had two or three RCDs shared across half the house each. When one tripped, half the house went dark, and finding the actual fault meant shutting down circuits one at a time. RCBOs solve that by fitting a dedicated safety switch on every circuit individually. Trip one and you know instantly which circuit caused it. Bathroom. Kitchen. Hot water. Lighting. Outdoor. Each on its own protected breaker.

Then there’s surge protection. A Type 2 SPD at the main board protects everything downstream from transient voltage spikes (lightning in the distance, Vector switching events, big commercial loads on the same street). With so many homes now running sensitive electronics (heat pump inverters, induction boards, LED drivers, solar inverters), an unprotected board is one spike away from an expensive week.

Commercial work is its own category, from main distribution boards through to sub-mains for tenant spaces, with labelling a BWOF audit can walk through. We cover that on our commercial electrical page.

Where We Work

3 Phase Switchboard Upgrades

Most Auckland homes run single phase and always will. Some properties need three phase, and it is worth knowing which camp you are in before planning anything expensive.

Three phase brings three live conductors into the property instead of one. That spreads the load and lets you run equipment a single phase supply cannot sensibly handle. Larger homes hit this. So does a property with pool heating, or a serious workshop, or several heat pumps running at once, or a faster EV charger than the standard home unit. It is also normal for commercial premises and small industrial units.

If the street supply is already three phase, a 3 phase switchboard upgrade is a board level change and reasonably contained. If it is not, the supply into the property has to change first, and that is a conversation with the network before it is a conversation with us. Worth starting early, because that side moves at its own pace rather than ours.

One thing we will say plainly: plenty of people ask for three phase when a properly sized single phase board would do the job. We would rather tell you that than sell you the bigger one.

Switchboard Upgrades Across Auckland

Pre-1960s inner-suburb villas are the most common upgrade. Ponsonby, Grey Lynn, Mt Eden, Kingsland, Remuera, Herne Bay, Devonport. Original fuse boards in Bakelite enclosures, no RCDs, earthing that often predates modern standards, and some with rubber-insulated wiring still in the walls. Usually a straightforward board replacement, occasionally a partial rewire if the cabling coming into the board is too far gone to safely terminate. Every one of these jobs gets a proper insulation resistance test on the existing circuits before we commit to reusing any of it.

Post-war state house stock across New Lynn, Henderson, Glen Innes, Mangere, and Ōtara is the next bracket. Better wiring than the villas on the whole, but the main supplies are often undersized for modern loads. A 1960s 60-amp supply copes with a jug, a TV, and a couple of heaters. It does not cope with an induction cooktop, a heat pump, a hot water cylinder, and an EV charger all fighting for headroom. We replace plenty of those across West Auckland, including switchboard work in Massey. Those upgrades usually mean a main supply lift with Vector alongside the board replacement. We do the same board work right across West Auckland, including switchboard upgrades in Swanson.

80s and 90s suburban stock (East Auckland, Howick, Pakuranga, Albany, Botany, West Harbour) is a different scenario again. Boards are usually MCB-based with at least partial RCD protection, so the bones are fine. The issue is capacity. Three bedrooms in 1988 didn’t assume a home office, a heat pump per room, an EV in the driveway, and a second hot water cylinder for the ensuite. Upgrades here are often adding RCBOs, fitting an SPD, and sometimes upgrading the main switch to a bigger rating rather than replacing the whole board.

Coastal and outdoor-mounted boards are their own category. Devonport, Takapuna, Milford, Bucklands Beach, the Muriwai stretch, and the Piha lowlands. Salt gets into the enclosure, corrosion creeps along the bus bar and earth terminals, and the board ages a decade in five years. IP-rated weatherproof enclosures and stainless hardware make a real difference, and most older coastal boards benefit from being moved inside during a replacement if the layout allows it.

Flood-damaged boards are their own problem. Where water has been through an enclosure the corrosion works into the terminals over the following seasons, so the board often needs replacing even when it still appears to work. Worth an inspection if your property has been through it.

Our Process

What to Expect

Straightforward four-step process.

Why Homeowners and Property Managers Choose Us

What Drives the Cost of a Switchboard Upgrade

We do not publish prices, because a switchboard quote that means anything comes from looking at the board. What moves the number is worth knowing up front though.

Board size and circuit count is the main one. More circuits means more devices and a bigger enclosure, and a small unit is not the same job as a five bedroom house with a sleepout.

Asbestos backing is the usual surprise. Older boards were sometimes mounted on it, and handling it properly adds process and time. WorkSafe publishes an information sheet on working on switchboards containing asbestos. This is the most common reason a straightforward looking job turns out not to be.

The state of the earthing and bonding matters, and so does the meter box if it is tired. Where the board lives counts too, because moving one from an awkward spot to somewhere accessible is a bigger job than replacing it where it stands.

Why Choose Totally Amped Electrical

Trading since 2009. Every electrician on the team is fully qualified and registered with the EWRB (the Electrical Workers Registration Board, which licenses sparkies in New Zealand). Every board we install meets AS/NZS 3000 and NZS 3100. We’ve replaced switchboards in heritage villas, leaky-home renovations, state-house upgrades, coastal properties eaten by salt, and post-flood rescue jobs that insurers needed certified before they’d settle. We know what inspectors, insurers, and next buyers look for in a board.

Clear quote. No surprise invoices. Power off when we said it would be. Power back on when we said it would be. If we find something unexpected behind the old board (which happens more often on older properties than not), we tell you before we do anything about it. Board goes in tidy. Labelled properly. Tested to the full standard. Signed off on paperwork your insurer actually recognises.

How long will the power be off?

For a standard residential switchboard replacement, plan on the power being off for roughly 4 to 6 hours on a half-day job, or most of the day on a full-day job. We confirm the exact window when we book the job so you can plan around fridges, freezers, home offices, and anything else that matters. If Vector needs to lift the main supply at the same time, that adds a separate isolation window which we coordinate with them and your retailer.

Does a switchboard upgrade need Council consent?

A like-for-like board replacement using the existing supply and mounting position generally doesn’t need a building consent. Changes that do include main supply upgrades, structural changes to accommodate a larger enclosure, moving the board to a new location, or anything that affects fire-rated walls. We tell you upfront which bracket the job sits in so there are no surprises. A Certificate of Compliance is issued on every job regardless of whether consent is required.

How do I know if my switchboard actually needs upgrading?

A few tells. Ceramic rewirable fuses (you swap fuse wire when one goes) means the board is old and has no RCD protection. A humming or buzzing board is often a loose connection, and loose connections mean heat. A board that’s warm to the touch anywhere on its face is abnormal. RCDs that keep tripping and won’t reset cleanly means something is breaking down somewhere. Anything in a Bakelite enclosure is pre-1970s and usually worth replacing on age alone. Planning a heat pump? An induction cooktop? An EV charger? If you are unsure whether the board can take it, that is a free phone call.

Does upgrading the switchboard mean rewiring the whole house?

Usually no. The board replacement is the board itself plus the terminations where the existing circuit cables come into it. If the cable insulation is in acceptable condition we re-terminate and reuse it. If we find individual circuits where the cable is too far gone (brittle rubber insulation, damaged sheath, degraded earth), we flag those specifically and quote a rewire on just those circuits. Only in pre-1960s homes with original rubber-insulated wiring throughout do we ever recommend a full house rewire alongside the board, and even then it’s a separate decision with its own quote. The regulators covering the Wiring Rules across New Zealand and Australia have published advice on the RCD clause behind this question, because the confusion is so common.

Can you add an EV charger or solar at the same time?

Yes, and it’s usually the most cost-efficient way to do it. The new board can be specified with the EV charger circuit, solar inverter isolation, battery backup integration, and any sub-mains for future work already built in. Doing it all in one visit means the board is sized correctly from day one, the labelling is right, and the Certificate of Compliance covers the full scope. If the EV charger or solar is coming later but you know it’s coming, we can still lay in the headroom now and just not fit the final circuit until the equipment arrives.

What paperwork should I end up with?

A Certificate of Compliance and an Electrical Safety Certificate. Switchboard replacement is prescribed electrical work, so a licensed electrical worker has to do it, and those certificates are your evidence it was done and tested properly. The Electrical Workers Registration Board sets out what they cover. Keep them somewhere you will find them again. If anyone does a board for you and the certificates never turn up, chase them.

Is a fuse box the same thing as a switchboard?

Same box, older technology. “Fuse box” usually describes a board still running fuses rather than circuit breakers, which is exactly the kind we are most often asked to replace. Fuse board, electrical panel, switchboard. People use them interchangeably and we know what you mean either way.
